Murphy Bed Dimensions

Our murphy beds come in two standard configurations: Vertical and Horizontal.

The vertical bed folds down so that the head of the bed is nearest the wall of the room when the bed is open.

The horizontal bed folds down so that one side of the bed is nearest the wall of the room when the bed is open.

NOTE: When planning for your new murphy bed, use the dimensions below as guidelines only.
The actual dimensions will vary based on options such as crown moulding selection, front design options, etc.

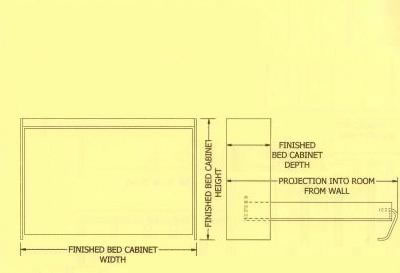

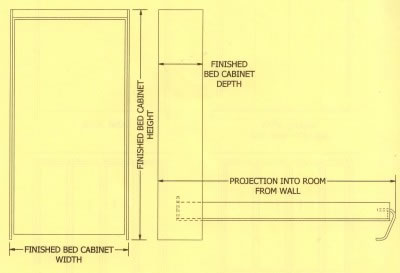

Vertical Bed Diagram     Horizontal Bed Diagram
VERTICAL BED

Outside Edge to Outside Edge Finished Cabinet Dimensions

HORIZONTAL BED
:
Outside Edge to Outside Edge Finished Cabinet Dimensions
SIZE HEIGHT WIDTH DEPTH* PROJECTION       SIZE HEIGHT WIDTH DEPTH* PROJECTION
TWIN 82 1/8" 44 7/8" 18 3/8" 85 1/2"       TWIN 47 3/8" 81" 15 7/8" 46"
FULL 82 1/8" 59 7/8" 18 3/8" 85 1/2"       FULL 62 5/16" 81" 15 7/8" 61"
QUEEN 87 1/8" 65 7/8" 18 3/8" 89 1/2"       QUEEN 68 5/16" 86" 15 7/8" 67"
KING 87 1/8" 82" 18 3/8" 89 1/2"



* Depth dimension is approximate. Adding crown moulding will increase the dimensions at the top of the bed. The depth of the bed handle is extra.
